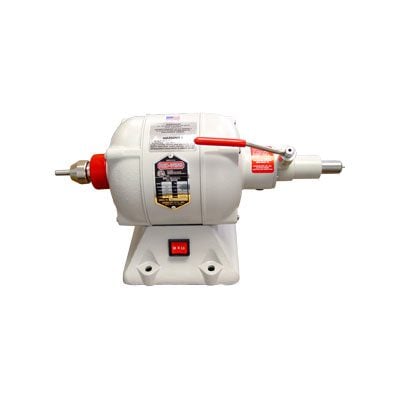

16B-1 Lathe with Chuk Changer

The 16B-1 combines the Model 26 high base lathe with the Model 16 Chuck Changer factory-installed on the right-hand side. This versatile setup allows technicians to use larger diameter buffs and abrasives while quickly switching between 3/32” (2.4 mm) and 1/4” (6.4 mm) burs, mandrels, and chuck accessories—even while the lathe is in motion.

Engineered for efficiency and precision, the 16B-1 increases productivity and delivers excellent concentricity for professional, high-quality finishing of appliances.

General Information:

The 16B-1 Lathe with Chuck Changer is a factory-assembled unit combining the Model 26 high base lathe with the Model 16 Chuck Changer installed on the right-hand side. Designed for dental labs and finishing tasks, it offers both versatility and precision in a compact footprint.

Performance:

Allows technicians to use larger diameter buffs and abrasives with high concentricity. The integrated Chuck Changer enables quick tool changes between 3/32” and 1/4” accessories while the lathe is running, improving workflow efficiency and reducing downtime.

Electrical Requirements:

115V / 60Hz
Optional: 230V / 50Hz with European plug (Model 16B-1-E, sold separately)



Physical Specifications:

Weight: 45 lbs. (20.4 kg)
Dimensions: 18” W x 8” D x 9.25” H (45 cm x 20.3 cm x 23 cm)

Construction:

Heavy-duty cast iron body for stability and durability
Factory-assembled for ease of use

Features and Accessories:

Factory-installed Model 16 Chuck Changer
Supports 3/32” (2.4 mm) and 1/4” (6.4 mm) burs, mandrels, and chuck accessories
All chuck and maintenance accessories included
Comes with the Red Wing Lathe Instruction Manual
Available in standard and 230V international versions
